V1.0 is a HMI LCD display.

1、50 word overview

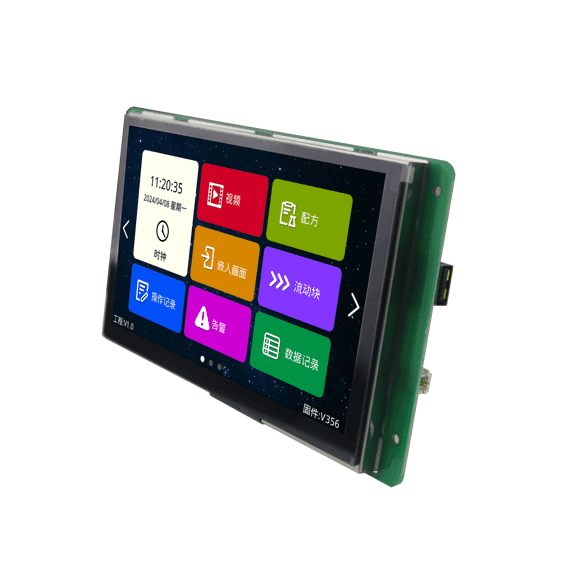

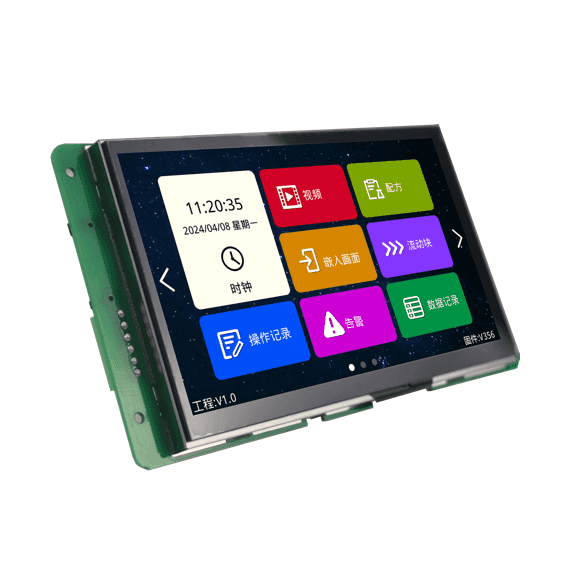

PV070800480M070- V1.0 is a HMI LCD display.

HMI means a Human-Machine Interface which is a user interface that connects a person to a machine, system, or device, allows users to interact with a device.

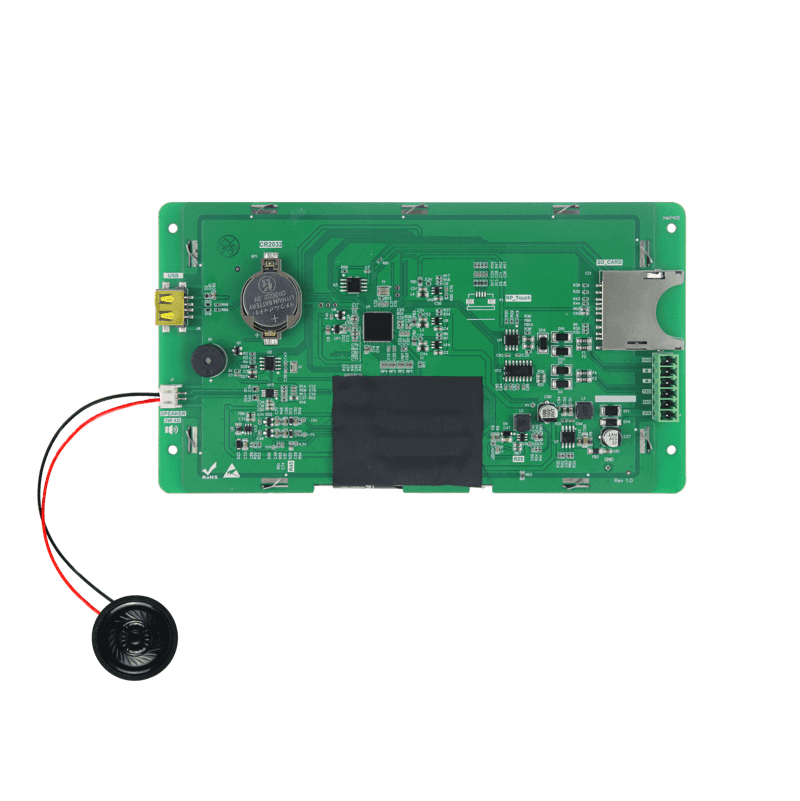

It is most commonly used in industrial. PV070800480M070- V1.0 includes 7inch WVGA pixel LCD display module with capacitive touch(resistive touch or without touch) with serial board with 400M SOC Processor intergrated with functions such as SDR graphic card, JPED decode, with audio, picture, video showing. We will share you our development software so you can use it to design your own user interfaces and functions to easily finish the software parts for your device.

2、characteristic

1. 32bits dual-core processor frame specified for picture display optimized
2. 2D speed engine
3. JPEG hardware decode to show different special effects, more fluently and gorgeous
4. It can work reliably, 24*365 work without stop, no redundant files

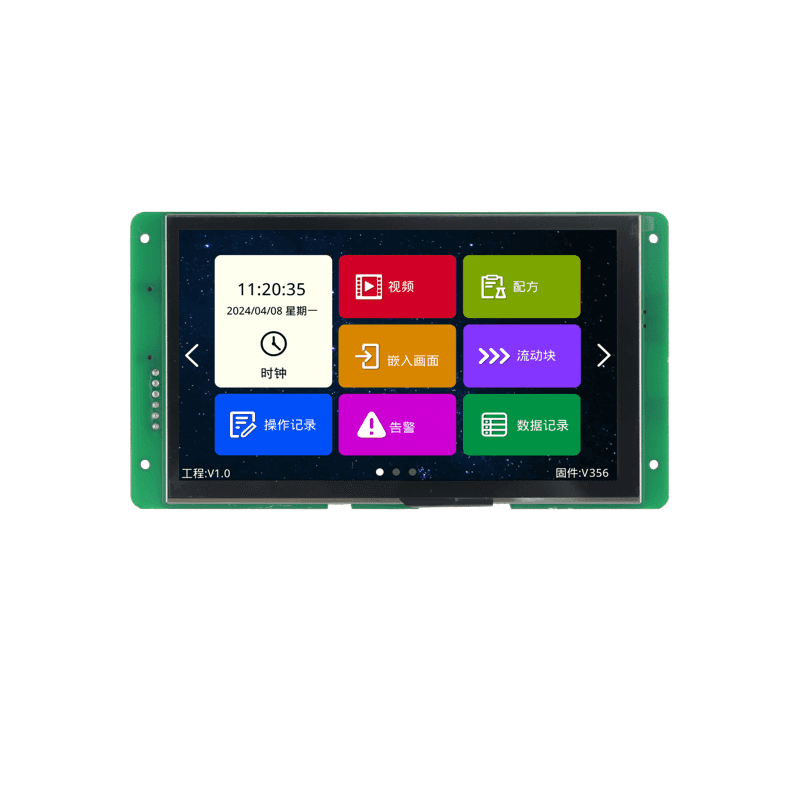

5. 7inch 800×480 dots LCD display with touch optional (Capacitive touch, Resistive touch, without)

3、application

The 7inch 800×480 TFT LCD with HMI board display can be used for Energy, Food and beverage, Manufacturing, Oil and gas, Power, Recycling, Transportation, Water and waste water etc.

PV070800480M070- V1.0
