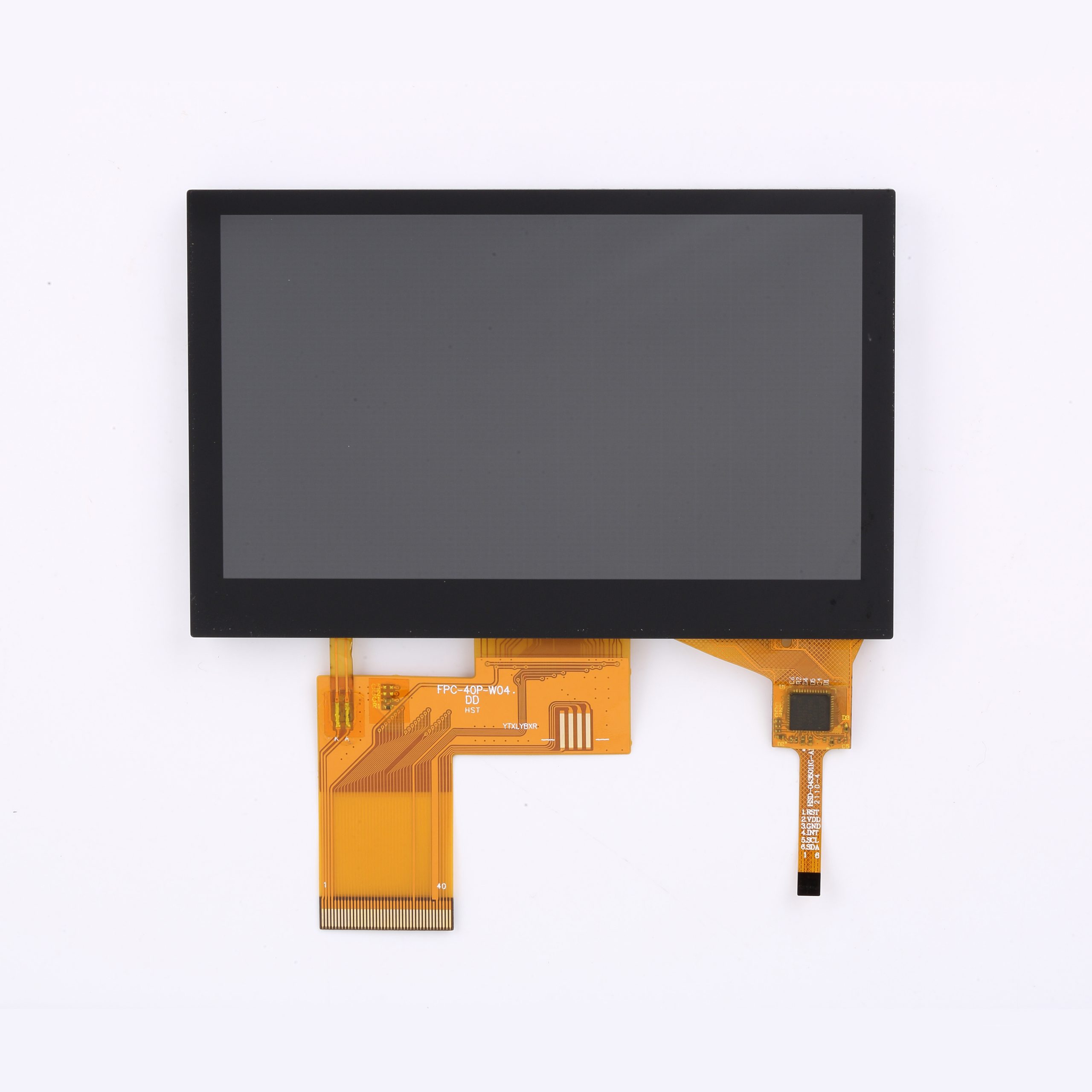

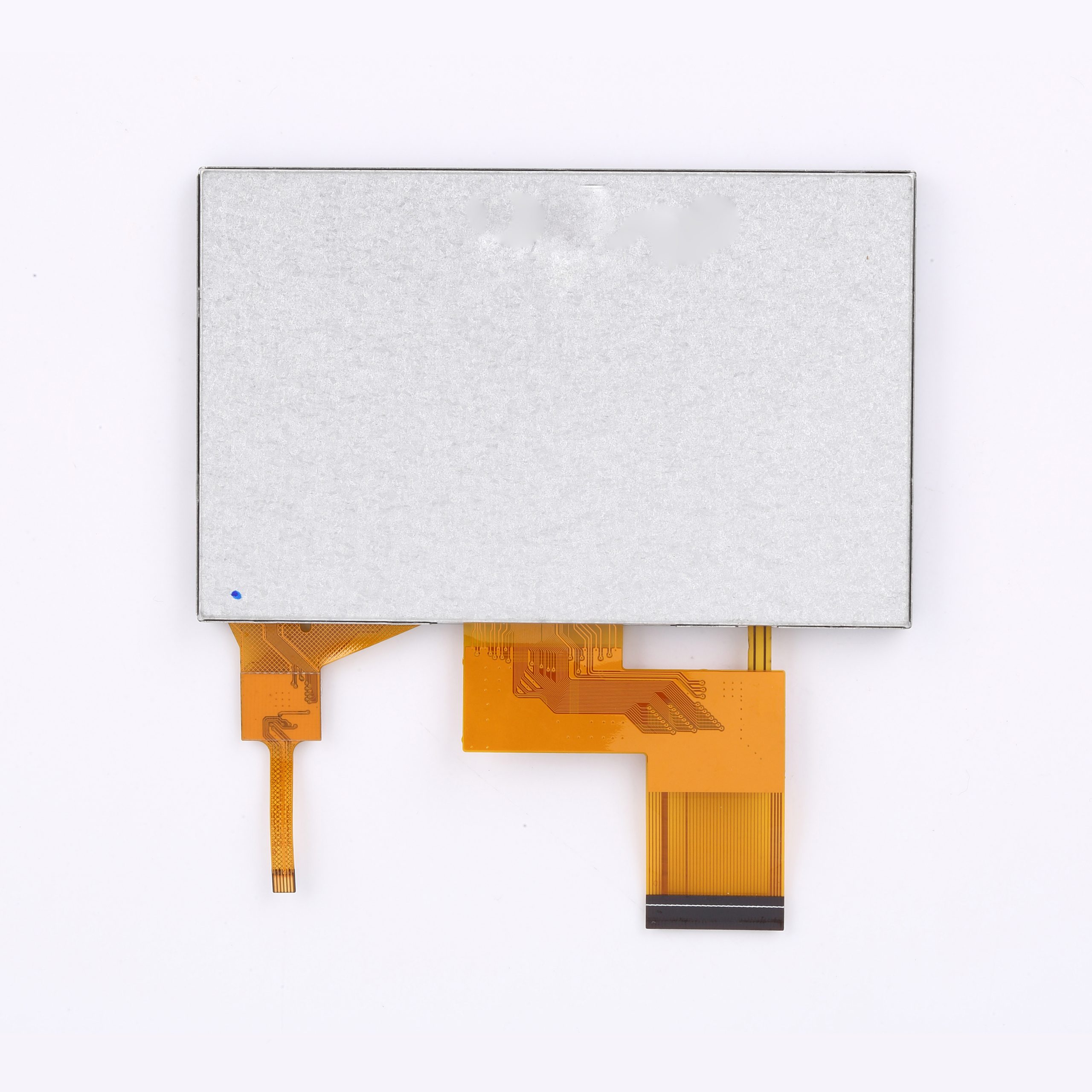

5.0” inch All 800*480 LCD display for medical, Ebike, smart home, hand-held device, industrial, EV charger

PV05043H0540Q-CT is a5inch IPS/800*480/24bit RGB/1000nits/-30~+85/CTP(Tape bonded) from Elsun,supply very stable.
In addition, the 5.0”inch TFT module brightness is 1000nits, and this 5.0”inch screen is All/Free/Wide viewing angle/IPS type.

This Liquid Crystal Display has a built-in ST72568 controller,and it support capacitive touch.
The material is RoHS-compliant.



1、Description

ELSUN 5.0” inch 800*480 TFT module display supply very stable.

This 5.0” inch supports 24bit RGB interface. enables fast and efficient communication between your Arduino and the display, ensuring smooth data transfer and real-time updates. This interface provides flexibility and compatibility with various Arduino models.

In addition, the 5.0” inch TFT display module brightness is 1000 nits. The feature of being readable in the sun makes it widely used in outdoor equipment, such as E-bike, Ev charger. And this 5.0” inch screen is All viewing type. For the touch part, we can also customize capacitive touch and resistive touch according to the customer requirements.



Powered by the ST72568 controller, this TFT LCD display delivers exceptional performance and reliability. Popular industries include IoT, industrial automation, consumer electronics, test and measurement instruments, and handheld devices.

Our displays are all RoHS compliant and adhere to strict environmental and safety standards.



2、Feature

1. Stable supply
2. 1000brightness/Sunlight readable/High brightness
3. Wide working temperature -30~85
4. Can custom resistive touch and capacitive touch
5. Medical, hand-held device, industrial, EV chargers,E-bike



3、Product specification

Item	5inch IPS/800*480/24bit RGB/1000nits/-30~+85/CTP(Tape bonded)
Model No.	PV05043H0540Q-CT
Resolution	800*480
Outline Dimension (mm)	130.7*85.8*5.1
Active Area (mm)	108*64.8
Viewing Angle	All
Brightness	1000
Interface	24bit RGB interface
Backlight	3*6LED
Driving IC	ST72568
Operating Temperature	-30~85
Storage Temperature	-30~85
Touch screen	Can custom resistive and capacitive touch screen
Application	E-Bike,Medical, hand-held device, industrial，



4、Application

This 5.0” inch 800*480 TFT display module can be used for Medical, hand-held device, industrial or Gas equipment, charging piles/engineering vehicles/ships, automotive and 3D printer.  The wide operating temperature and high brightness characteristics make it widely used in outdoor equipment。

PV05043H0540Q-CT
