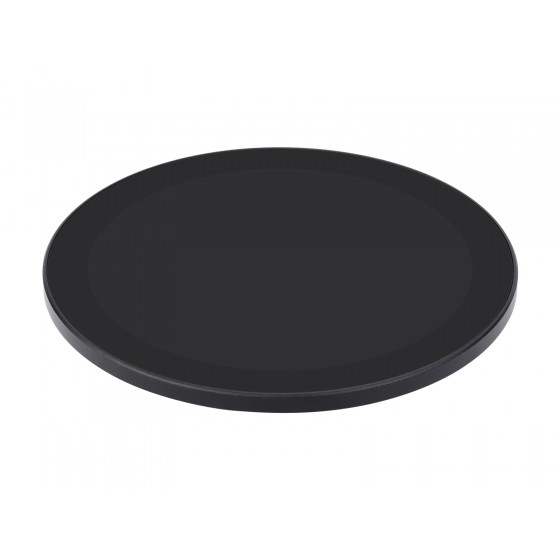

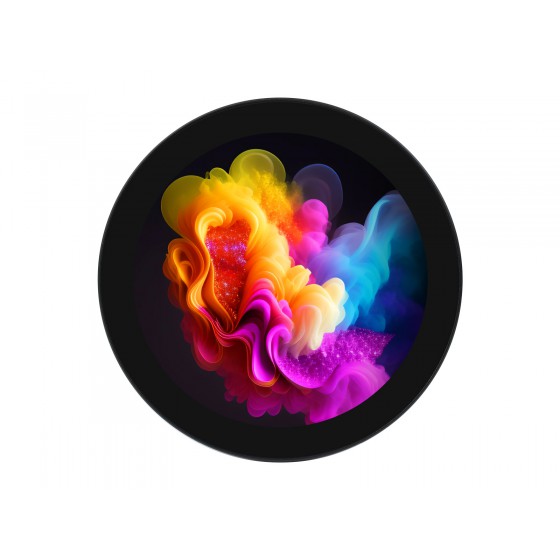

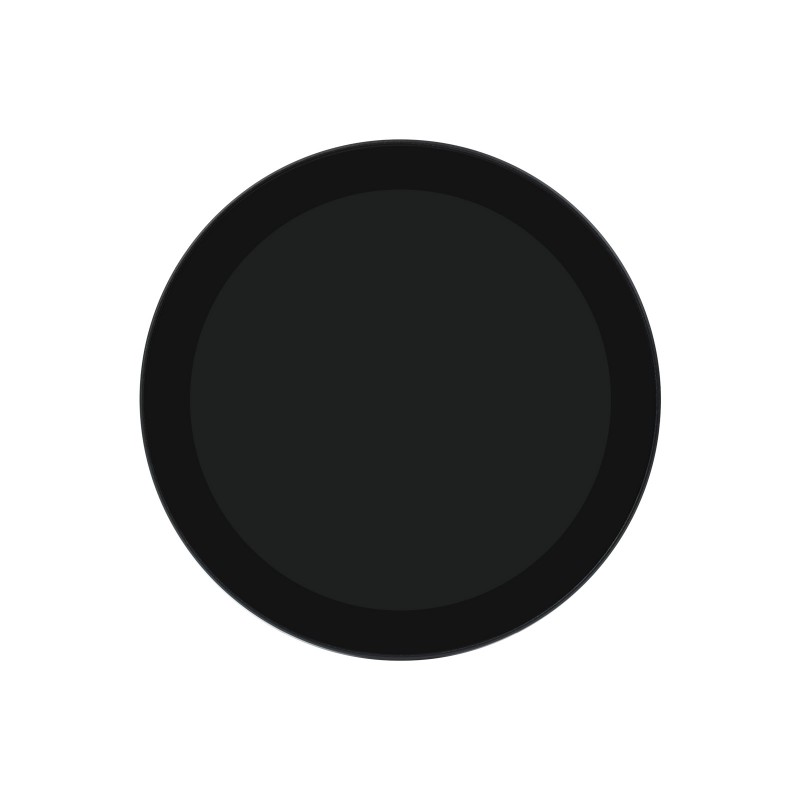

PV04016D0130Q is a 4.0″ inch 720*720 IPS round display from Elsun.
It is a round display ,which is designed especially for smart gadgets,smart home and others.
This TFT display provides a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in ICNL9707 controller,and it support capacitive touch.
The material is RoHS-compliant.
1、Description
ELSUN 4.0″ inch 720*720 TFT module display supply very stable.
This 4.0″ inch supports MIPI interface. enables fast and efficient communication between your Arduino and the display, ensuring smooth data transfer and real-time updates. This interface provides flexibility and compatibility with various Arduino models.
In addition, the 4.0″ inch TFT display module brightness is 300 nits, and this 4.0″ inch screen is All viewing type. For the touch part, we can also customize capacitive touch and resistive touch according to the customer requirements.
Powered by the ICNL9707 controller, this TFT LCD display delivers exceptional performance and reliability. Popular industries include IoT, industrial automation, consumer electronics, test and measurement instruments, and handheld devices.
Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
2、Feature
- Round display
- Stable supply
- 300brightness
- All view angle
- Wide working temperature -20~70
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial
3、Product specification
| Item | 4.0 inch IPS 720*720 square TFT display for smart home |
| Model No. | PV04016D0130Q |
| Resolution | 720*720 |

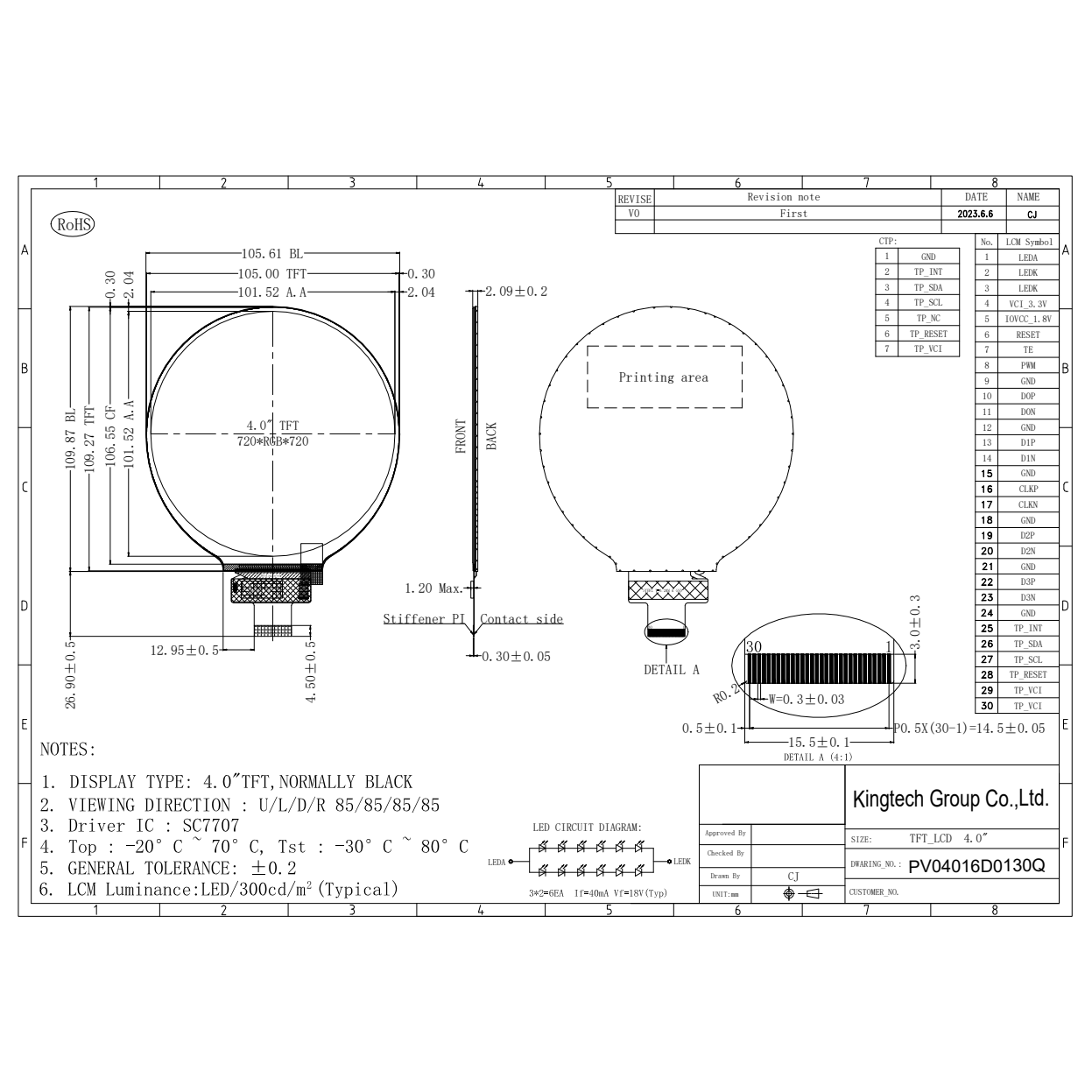

| Outline Dimension (mm) | 105.61*109.87*2.09 |
| Active Area (mm) | φ 101.52 |
| Viewing Angle | All |
| Brightness | 300nits |
| Interface | MIPI |
| Backlight | 6*2LED |
| Driving IC | SC7707 |
| PIN No. | 30 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial, smart home |
4、Application
The 4.0 inch 720*720 round TFT display module can be used for Electric motorcycle, Medical, hand-held device, industrial, smart home or others.
