PV04015H0150P is a 4.0″ inch 480*480 IPS round display from Elsun.
This TFT display provides a full view, people could see the quality display image from any angle.
The 4.0″inch TFT module brightness is nits, and this 4.0″inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, the 4.0″inch circular display has exsiting capacitive touch, but Elsun also can custom the touch according to customer’s requirements.
1、Description
ELSUN 4.0″ inch 480*480 TFT module display supply very stable.
This 4.0″ inch supports RGB interface. enables fast and efficient communication between your Arduino and the display, ensuring smooth data transfer and real-time updates. This interface provides flexibility and compatibility with various Arduino models.
In addition, the 4.0″ inch TFT display module brightness is 500 nits, and this 4.0″ inch screen is All viewing type. For the touch part, we can also customize capacitive touch and resistive touch according to the customer requirements.
Powered by the ST7701S controller, this TFT LCD display delivers exceptional performance and reliability. Popular industries include IoT, industrial automation, consumer electronics, test and measurement instruments, and handheld devices.
Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
2、Feature
- Stable supply
- Square display
- Wide working temperature -10~60
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial

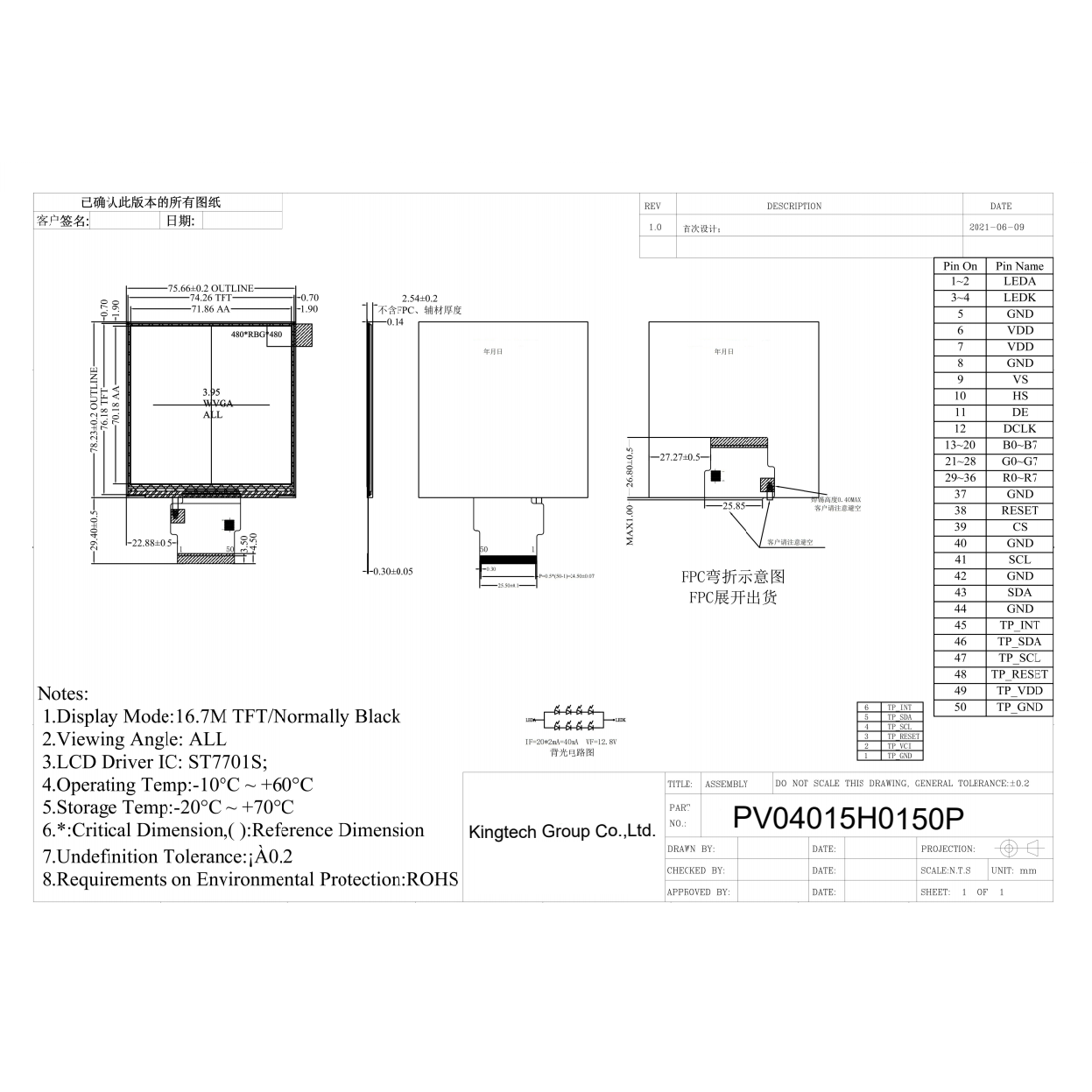

3、Product specification
| Item | 4.0 inch IPS 480*480 suqareTFT display |
| Model No. | PV04015H0150P |
| Resolution | 480*480 |

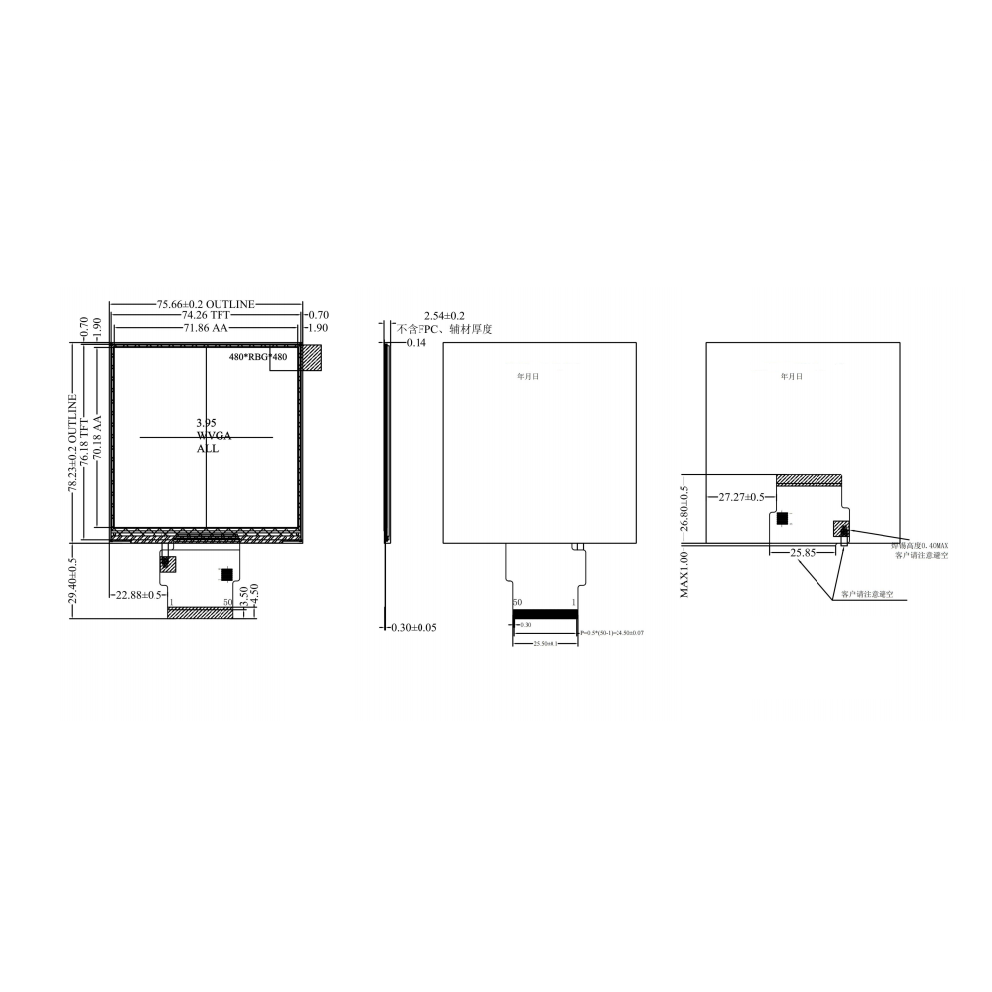

| Outline Dimension (mm) | 75.66*78.23*2.54 |
| Active Area (mm) | 71.86*70.18 |
| Viewing Angle | All |
| Brightness | 500nits |
| Interface | RGB |
| Backlight | 4*2LED |
| Driving IC | ST7701S |
| PIN No. | 50 |
| Operating Temperature | -10~60C |
| Storage Temperature | -20~70C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, Hand-held device, Industrial, Smart-home |
4、Application
The 4.0 inch 480*480 TFT display module can be used for E-Bike, Medical, hand-held device, industrial, smart home or others.
