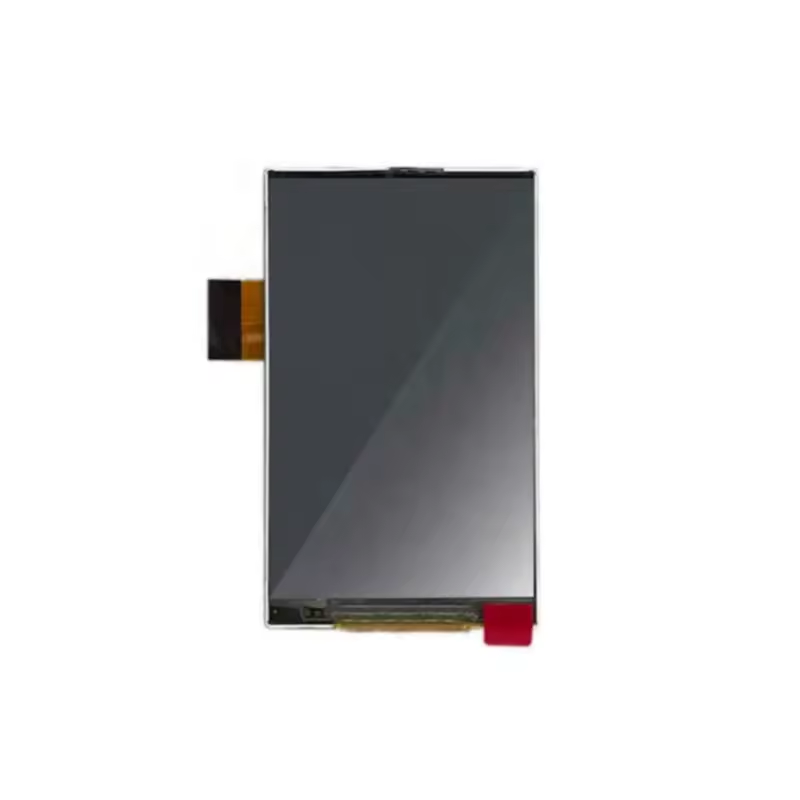

PV03522H0139V is a 3.5″ inch 320*480 IPS round display from Elsun.
This TFT display provides a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in ST7796 controller,and it support capacitive touch.
The material is RoHS-compliant.
1、Description
ELSUN 3.5″ inch 320*480 TFT module display supply very stable.
This 3.5″ inch supports MCU interface， enables fast and efficient communication between your Arduino and the display, ensuring smooth data transfer and real-time updates. This interface provides flexibility and compatibility with various Arduino models.
In addition, the 3.5″ inch TFT display module is All viewing type. For the touch part, we can also customize capacitive touch and resistive touch according to the customer requirements.
Powered by the ST7796 controller, this TFT LCD display delivers exceptional performance and reliability.
This display are widely used for Medical, E-bike, forklift, hand-held device, industrial, thermostat or others.
Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
2、Feature
- IPS display
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial
- Multi-interface

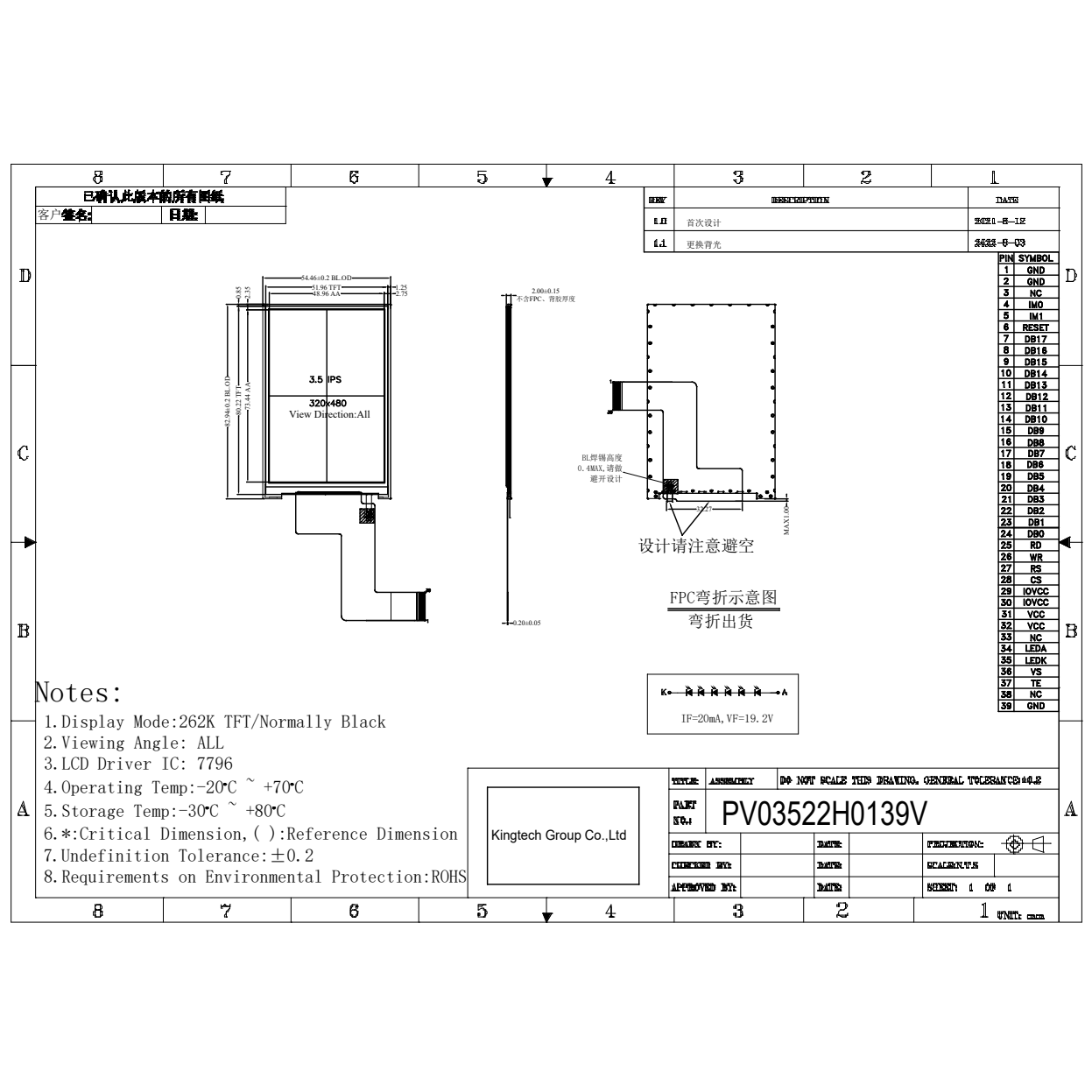

3、Product specification
| Item | 3.5inch IPS 320*480 TFT display |
| Model No. | PV03522H0139V |
| Resolution | 320*480 |
| Outline Dimension (mm) | 54.46*82.94*2 |
| Active Area (mm) | 48.96*73.44 |
| Viewing Angle | All |
| Brightness | / |
| Interface | MCU |
| Backlight | 6*1LED |
| Driving IC | ST7796 |
| PIN No. | 39 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, medical, hand-held device, industrial, smart home |
4、Application
The 3.5 inch 320*480 TFT display module can be used for Medical, E-bike, forklift, hand-held device, industrial, thermostat or others.
