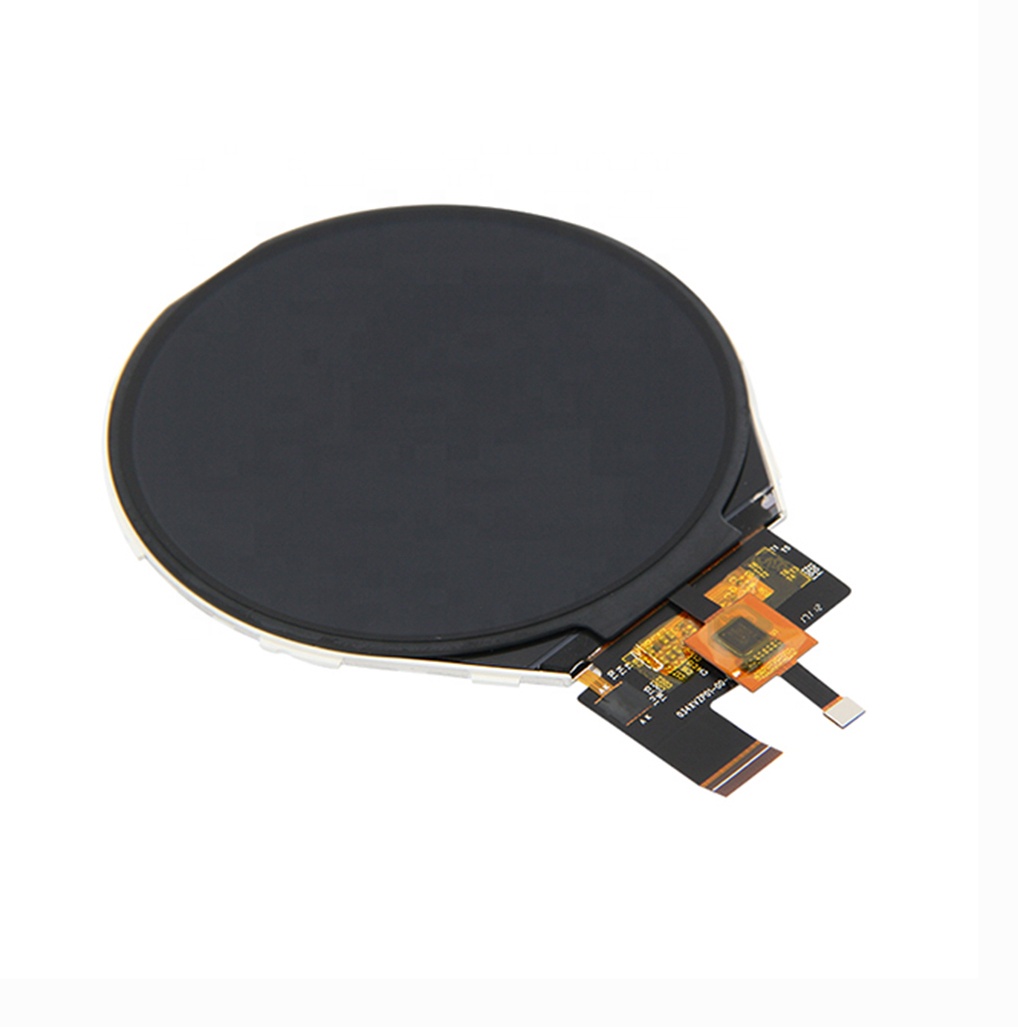

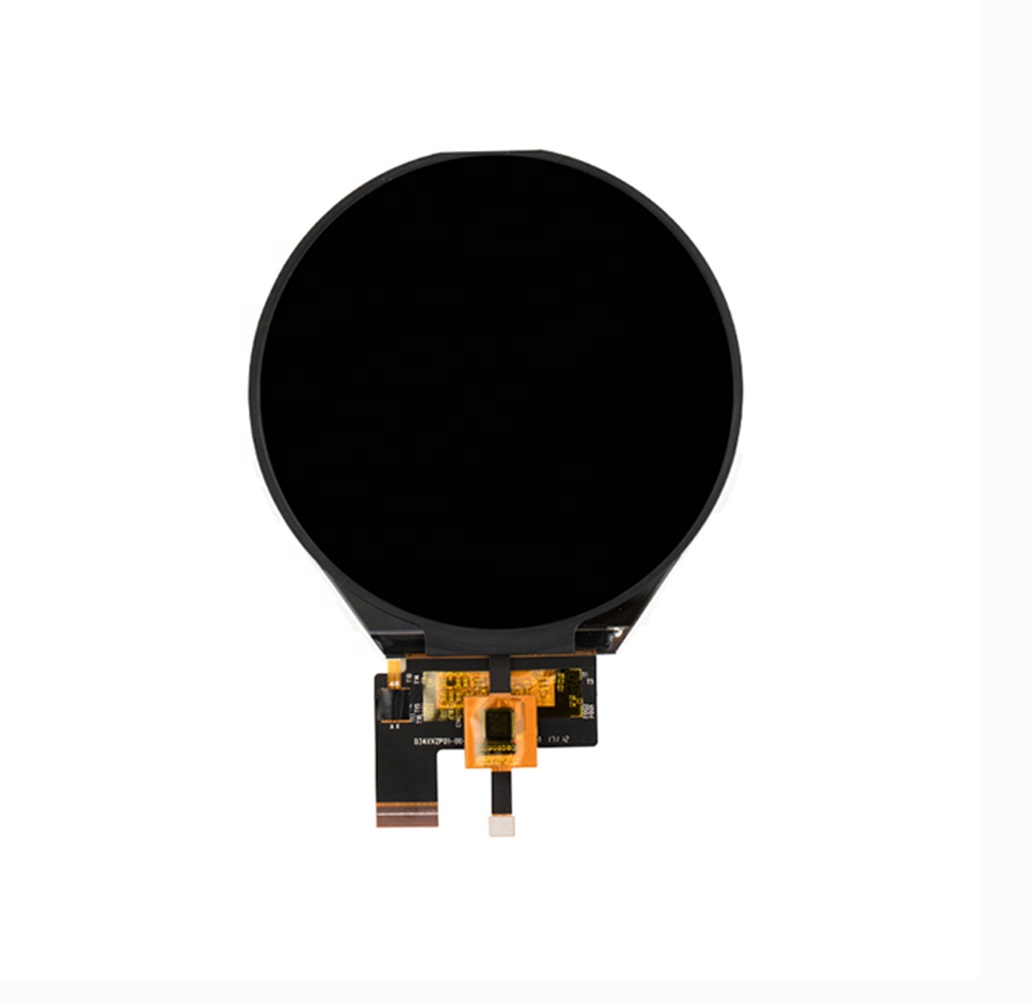

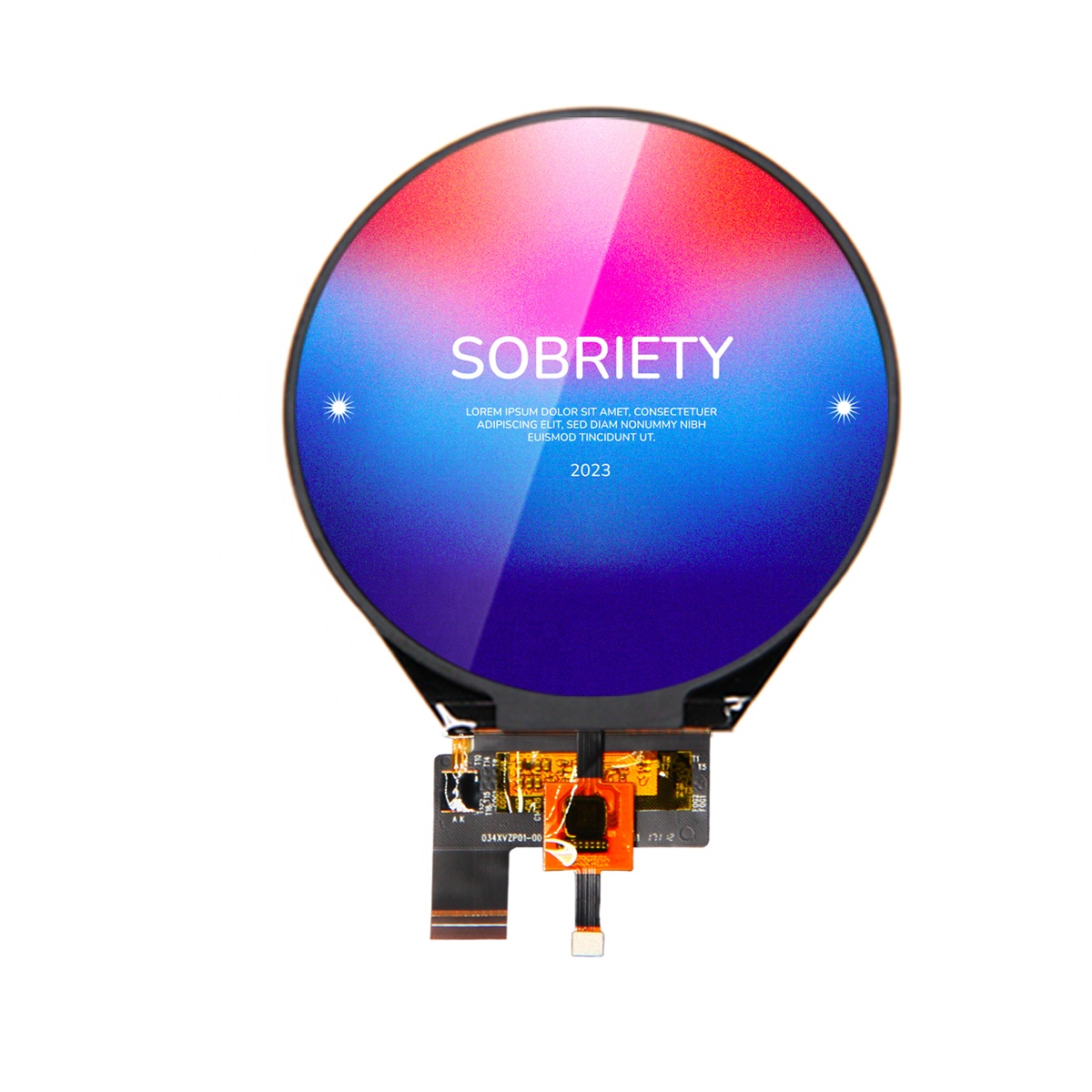

PV03405D0130F is a 3.4” inch 800*800 IPS round display from Elsun.

Elsun 3.4inch IPS round display/800*800/MIPI/1000nits/-30~+80 supply very stable.

This 3.4 inch display supports MIPI interface. And we also have HDMI board for this display.

In addition, the 3.4”inch TFT module brightness is 1000nits, widely used for ourtdoor application. This 3.4”inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, the 3.4 inch circular display has exsiting capacitive touch, but Elsun also can custom the touch according to customer’s requirements.

1、Description

ELSUN 3.4” inch 800*800 TFT module display supply very stable.

This 3.4” inch supports MIPI interface,HDMI board is available, this communication interface provides flexibility and compatibility with various Arduino models.

In addition, the 3.4” inch TFT display module brightness is 1000 nits, and this 3.4” inch screen is All viewing type, widely used for outdoor applications. For the touch part, we can also customize capacitive touch and resistive touch according to the customer requirements.

Powered by the ILI9881C controller, this TFT LCD display delivers exceptional performance and reliability. Popular industries include IoT, industrial automation, consumer electronics, test and measurement instruments, and handheld devices.

Our displays are all RoHS compliant and adhere to strict environmental and safety standards.

2、Feature

Bar type display/Round display
Stable supply
1000brightness/Sunlight readable/High brightness
Wide working temperature -30~80
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial

3、Product specification

Item	3.4inch IPS 800*800 round LCD display
Model No.	PV03405D0130F
Resolution	800*800
Outline Dimension (mm)	96.699.79 3.8
Active Area (mm)	φ 87.6
Viewing Angle	All
Brightness	1000nits/Sunlight readable/High brightness/Outdoor
Interface	MIPI
Backlight	5*2LED
Driving IC	ILI9881C
PIN No.	30
Operating Temperature	-30~80
Storage Temperature	-30~80

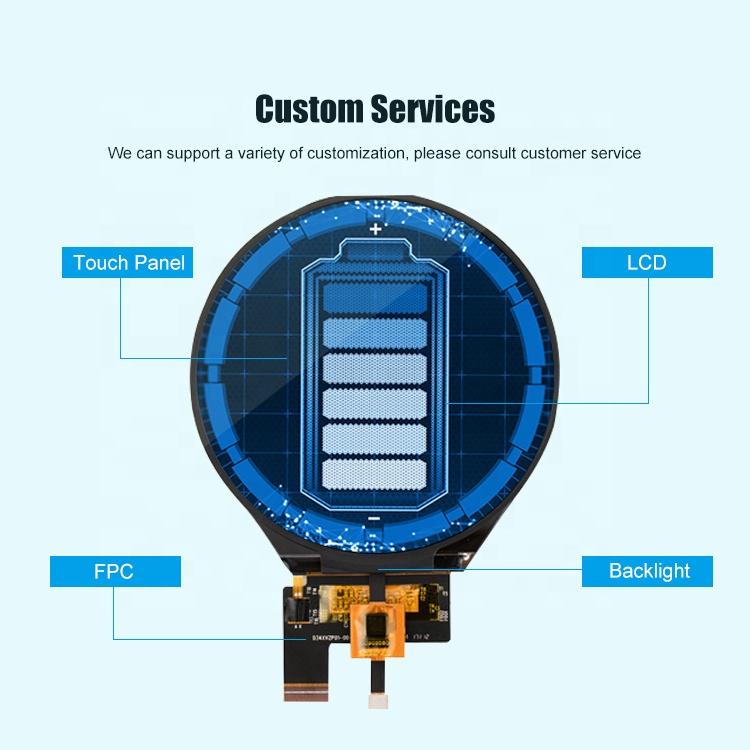

Touch screen	Can custom resistive and capacitive touch screen
Application	Medical, hand-held device, industrial, smart home

4、Application

The circular TFT LCD display is suitable for home appliances, electronic alarm clocks, cocktail machines, and other products requiring circular display screens.
