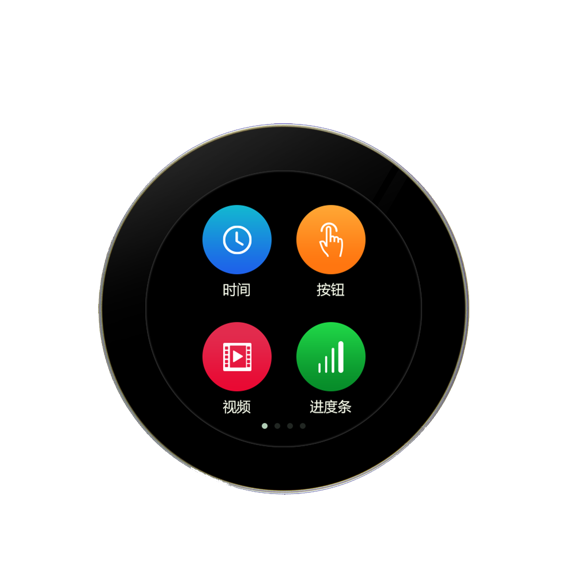

2.1 inch 480*480 round display with HMI board

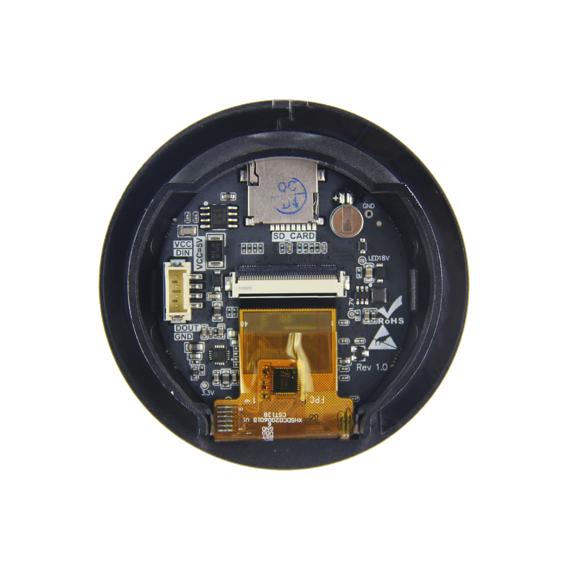

2.1 inch 480*480 round display with HMI board - Image 2

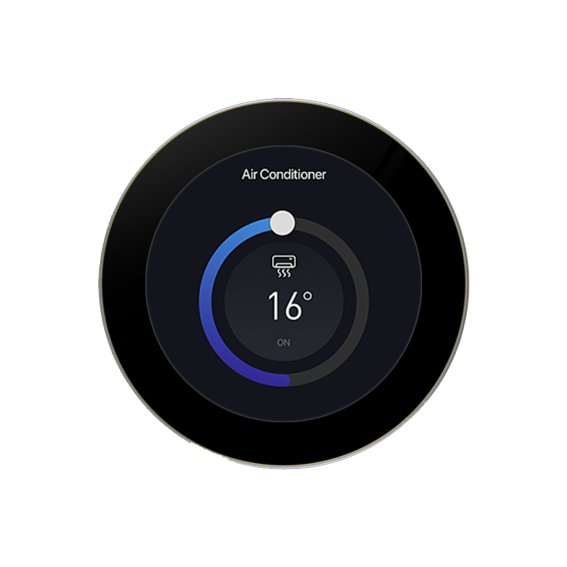

2.1 inch 480*480 round display with HMI board - Image 3

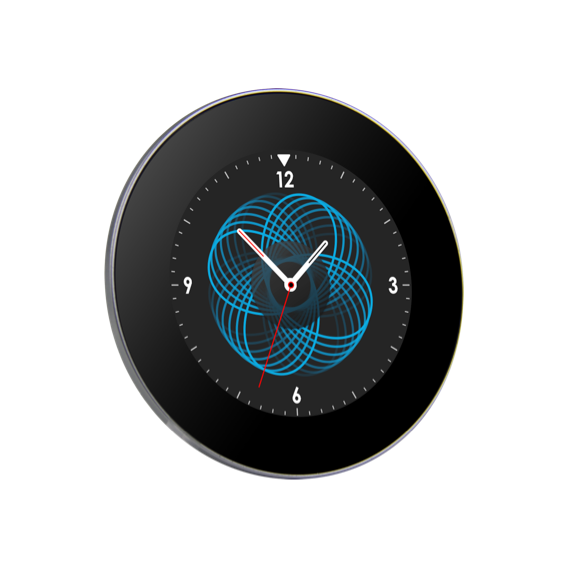

2.1 inch 480*480 round display with HMI board - Image 4

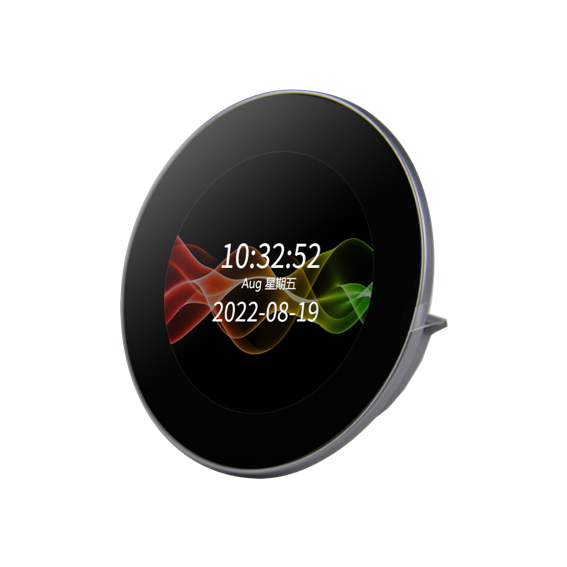

2.1 inch 480*480 round display with HMI board - Image 5

2.1 inch 480*480 round display with HMI board

Category:

1、50 word overview

2.1 inch 480*480 round display with HMI board with stable production.

This 2.1 inch round LCD TFT LCD display supports TTL interface, 300nits brightness.

It is IPS, full/wide/all viewing angle, with better display effect.

For the touch part, we can also customize capacitive touch according to the customer requirements.

The 2.1inch with HMI board product can connect laptop or main board to use directly.



2、Characteristic

  1. TFT LCD module with HMI board
  2. 480×480
  3. Stable supply
  4. 80/80/80/80 viewing angle
  5. TTL interface
  6. 300nits brightness
  7. Support capactivie touch and also can customcapacitive touch
  8. ＞20000H life-time
  9. ISO9001:2015
  10. Match ROHS standard

3、Application

The 2.1 inch IPS 480×480 TFT LCD with HMI board display can be used for Medical, Industrial or EV-chargers, Margin, Agriculture, Smart-Home device, smart switch.

8月21日

PV021480480KM021



Size

2.1 inch
Resolution

480*480
Operating Temperature

-20～+70℃
Storage Temperature

-30～+80℃
Display Type

IPS LCD screen
Backlight

LED
Brightness (cd/m²)

300
Backlight Life-time(h)

>20,000
Contrast

1000:1
Viewing Angle (L/R/T/B)

80/80/80/80
Touch Type

Capacitive touch screen
Capacitive Touch Screen Mode

Single-point, swipe touch
Capacitive Touch Screen Light Transmittance

More than 90%.
The Number of Capacitive Screen Touches

The number of capacitive screen touches is theoretically unlimited, and the touch life is related to the working environment (dust, humidity).
Capacitive Touch Cover Glass Customized

The "glass cover + capacitive touch" integrated lamination service can be customized according to the user's drawing size.
