1.28 inch IPS 240*240 LCD display for Smart watch and wearable

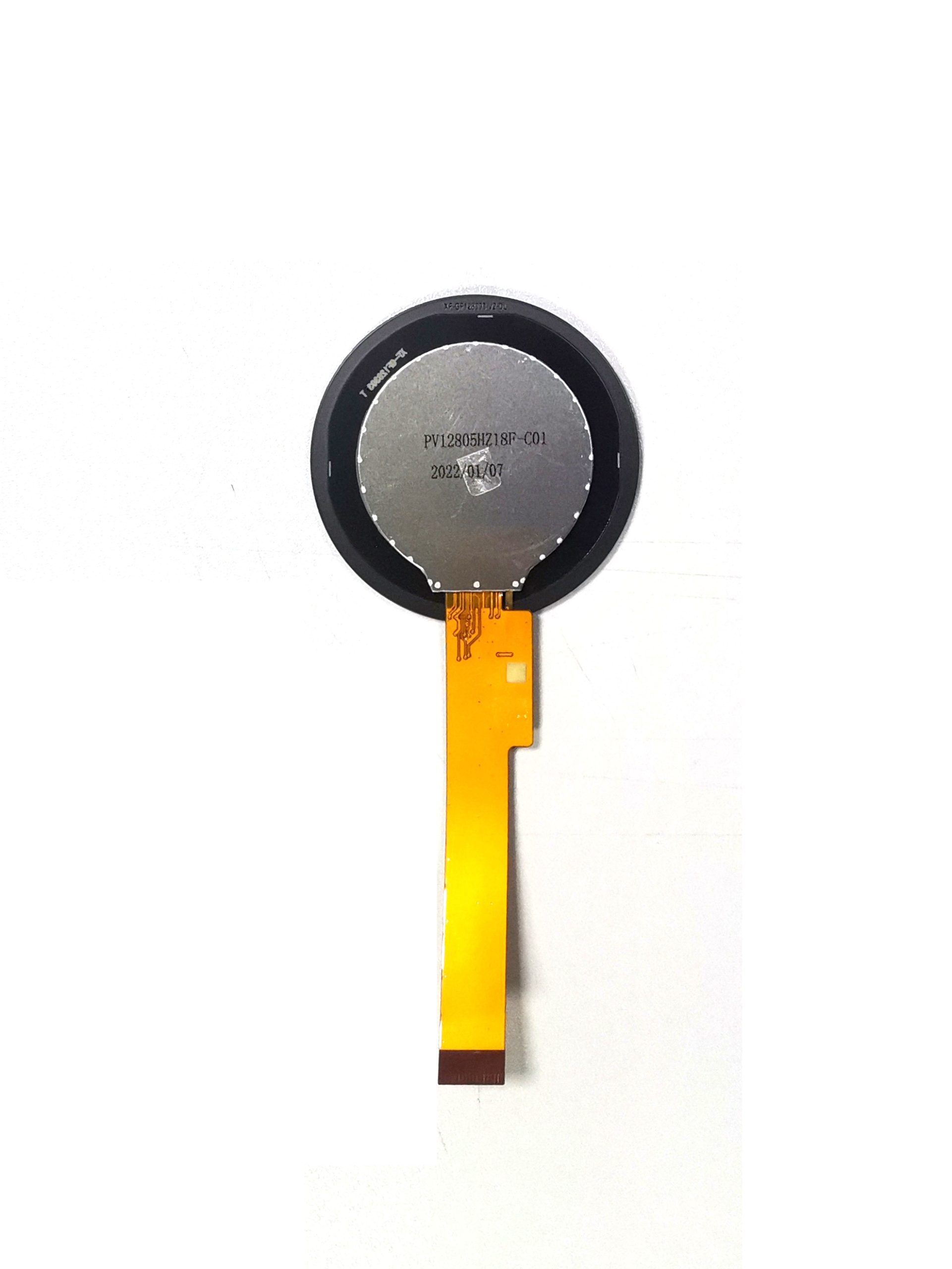

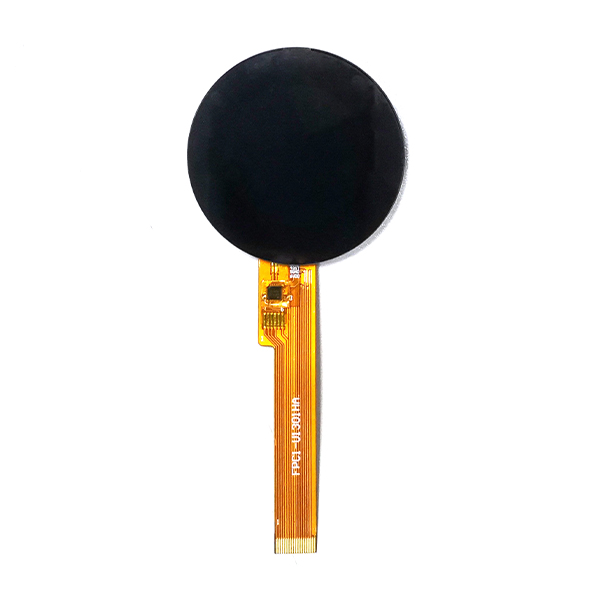

PV12805HZ18F is a 1.28 inch 240*240 IPS round display from Elsun.

This small round display is designed especially for wearable devices and smart gadgets.
This TFT display provides a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in GC9A01 controller,and it support capacitive touch.
The material is RoHS-compliant.



1、Describe

This 1.28 inch LCD adopts a SPI communication interface, which can greatly save the GPIO port, The communication speed will be faster and provides flexibility and compatibility with various Arduino models.



In addition, the 1.28″ inch TFT display module brightness is 350 nits, and this 1.28″ inch screen is All viewing type. For the touch part, the 1.28inch circular display has exsiting capacitive touch, but Elsun also can custom the touch according to customer’s requirements.



Powered by the GC9A01 controller, this TFT LCD display delivers exceptional performance and reliability. Popular industries include smart home, industrial automation, consumer electronics, test and measurement instruments, and handheld devices.

Our displays are all RoHS compliant and adhere to strict environmental and safety standards.



2、Characteristic

1. Round display
2. Stable supply
3. 350brightness
4. Can custom resistive touch and capacitive touch
5. Application:Hand-held device, Industrial,Smart home,Round knob,Smart watch,wearable



3、Application

The 1.28 inch 240*240 IPS round TFT LCD display can be used for Smart watch and wearable.

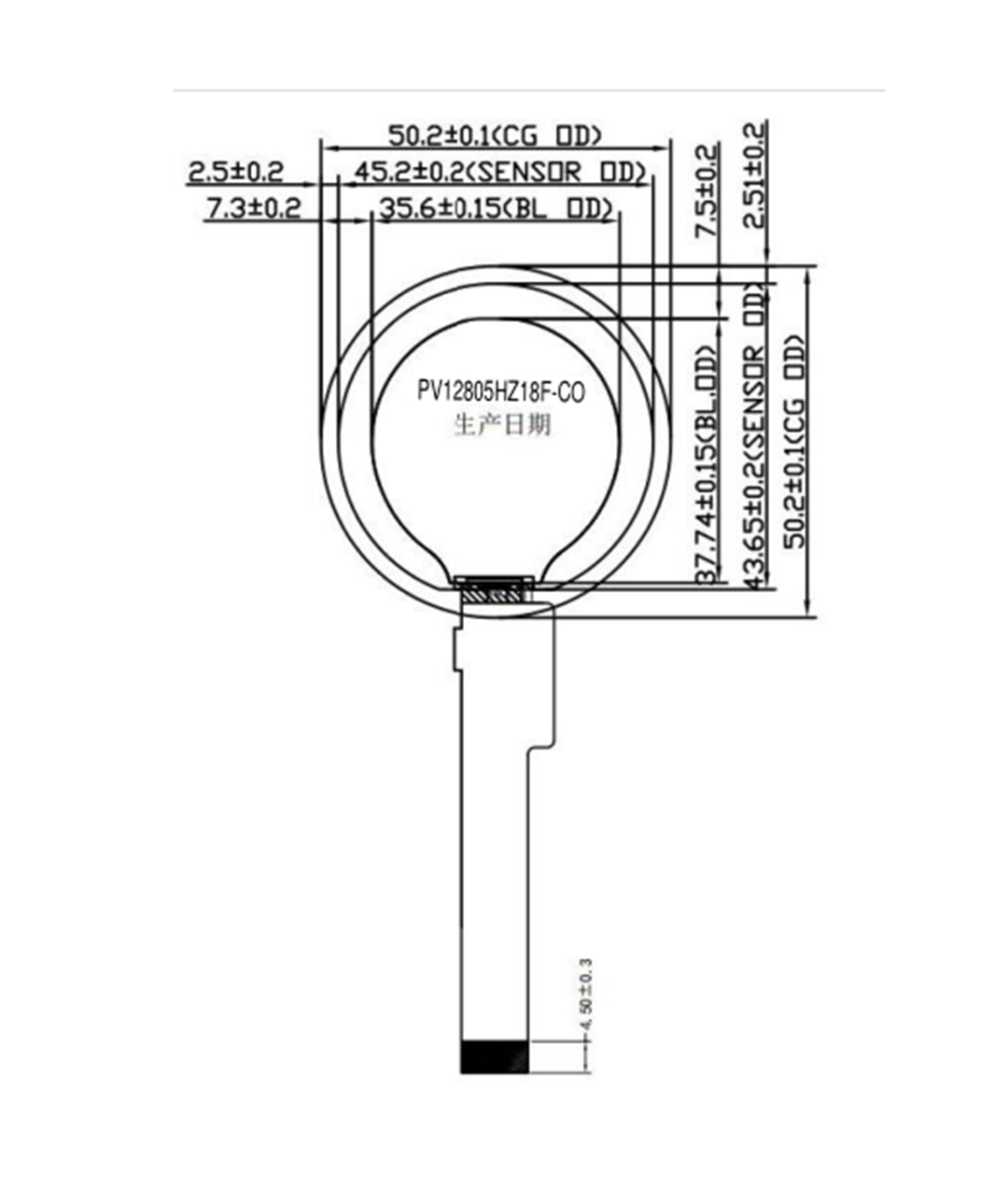

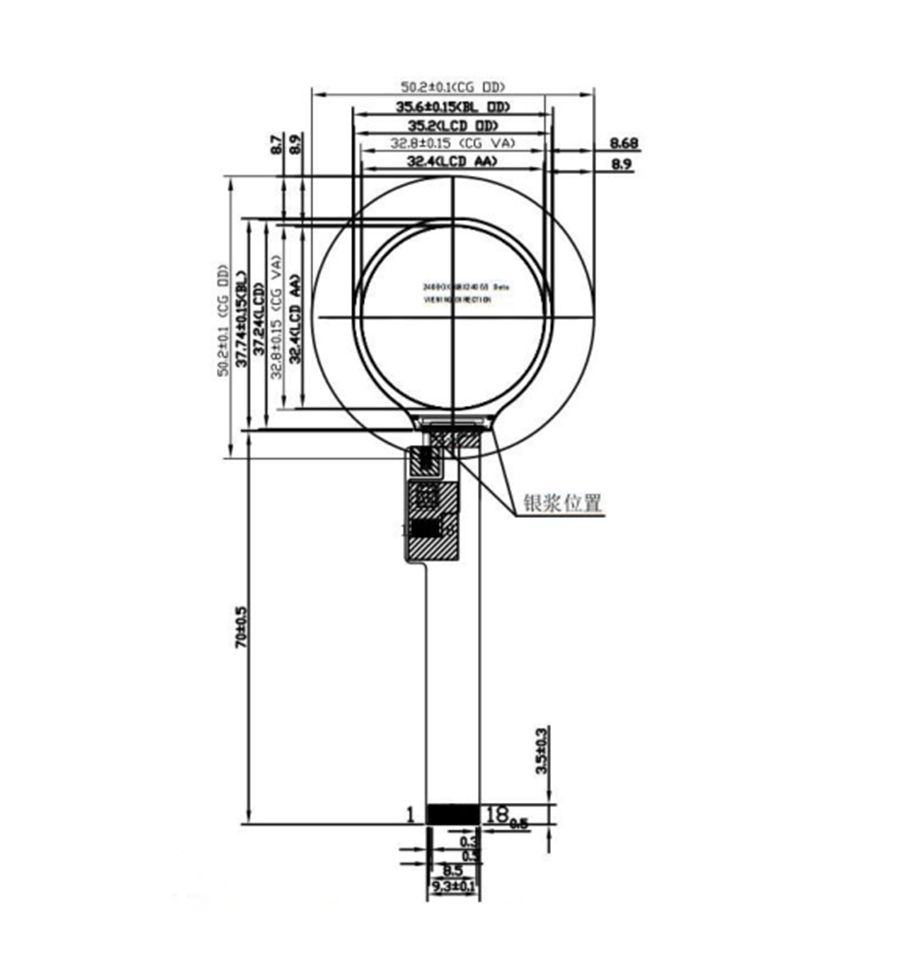

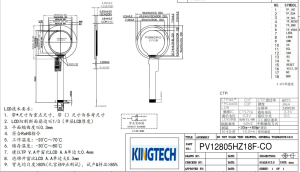

3. 规格书PV12805HZ18F
