Since 2003, we have been customizing products according to customers’ project requirements and applications. 90％ of products are custom made.
We have an experienced technical team and extensive expertise to provide our customers with the most suitable display solutions.
The following is the customization process：
Evaluation Quotation
Evaluate the quotation according to the requirements and the sample or the drawing of customer
Drawing
After the customer confirms the quotation, we make drawings for the customer to confirm (drawing time is usually 1-3 days)
Samples
After the customer confirms the drawings, make samples according to the confirmed drawings (proofing time is usually 3~4weeks)
Mass Production
After the customer confirms the sample, enter mass production (mass production time is usually 4 weeks)
Customization Service---TFT LCD DISPLAY：
LCD Panel
1. Dimension
2. Resolution
3. Working temperature

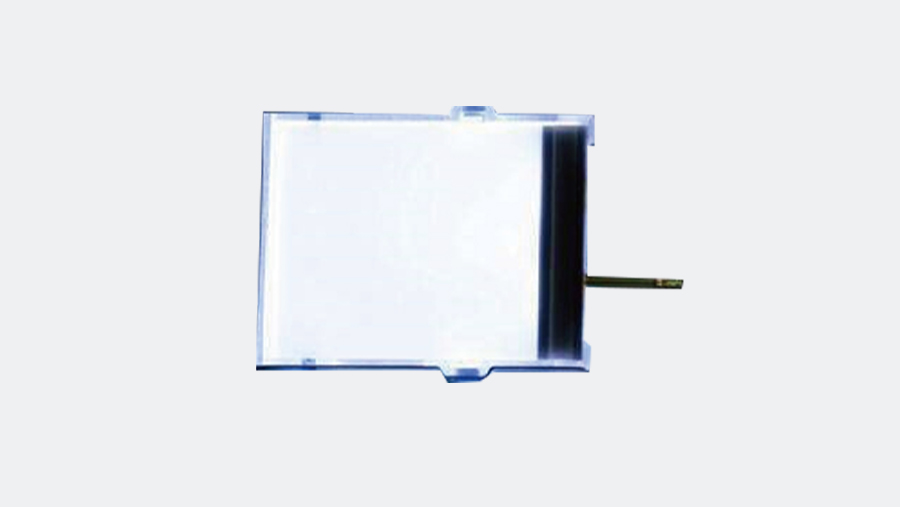

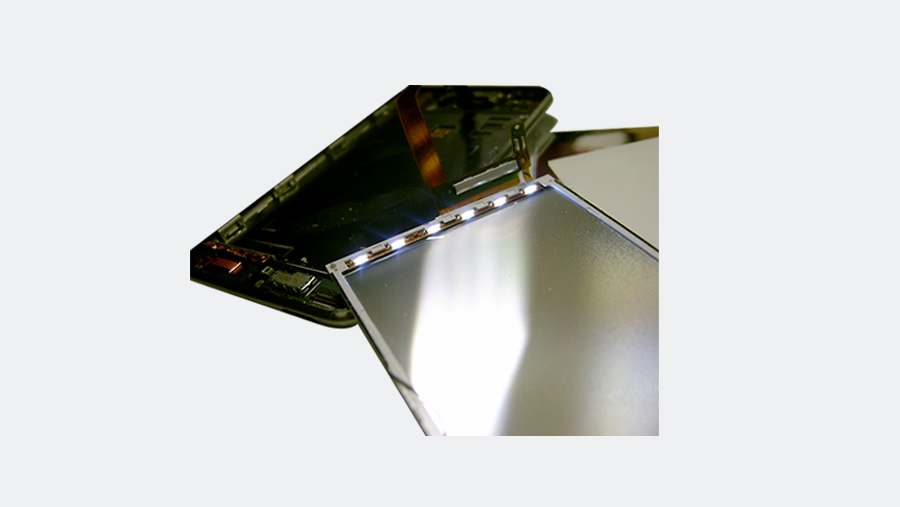

Display Backlight
1. Voltage/input current
2. Brightness or colors/NVIS.
3. Assembly type from array to side LEDs.
4. Brightness
5. Outline dimension

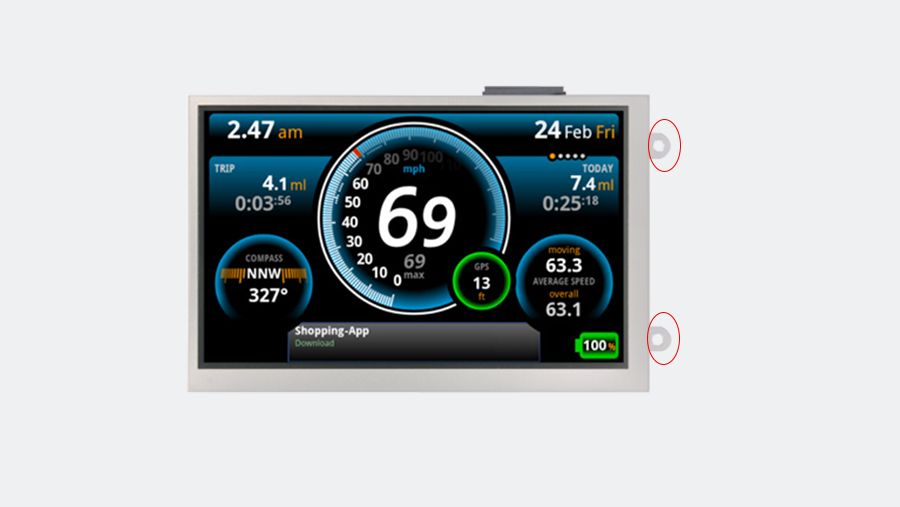

6. Add positioning column or positioning holes

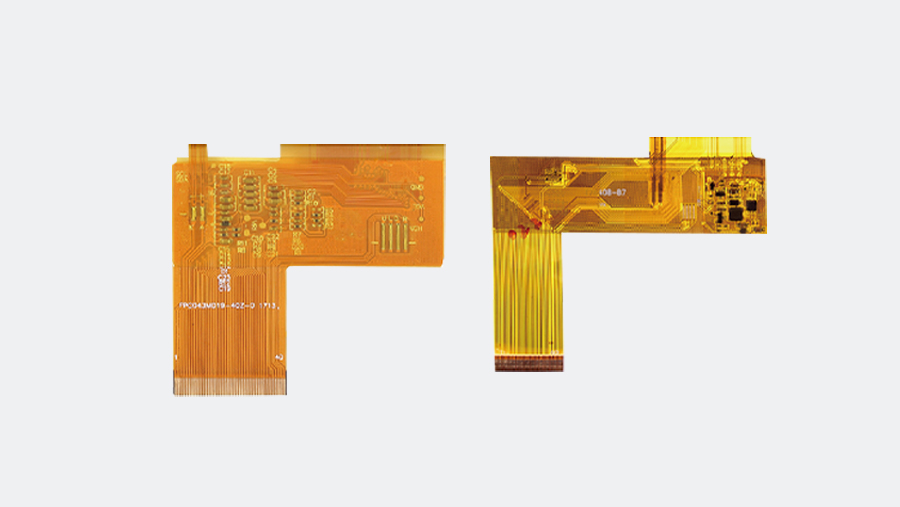

FPC
1. Interface
2. Shape
3. Dimension
4. Connector

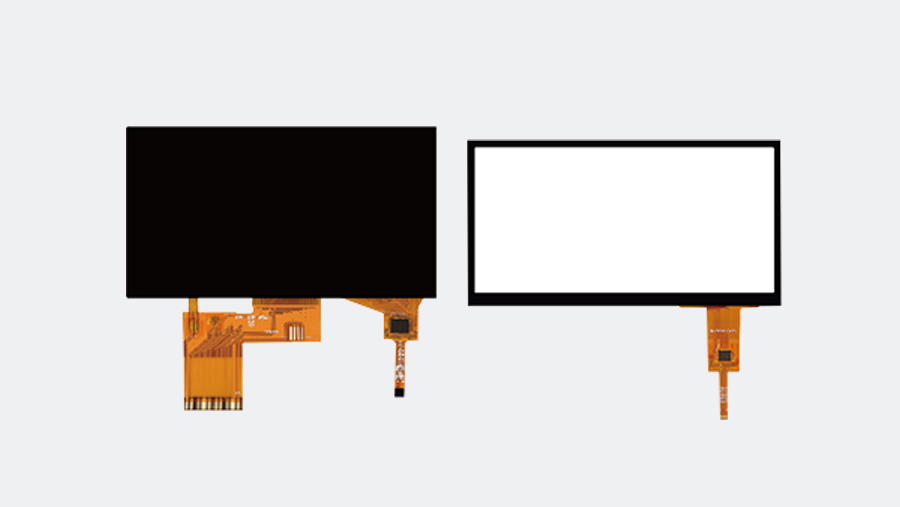

Touch
1. IC
2. Dimension
3. Gloved/ Wet & Salt Water/ Hover Touch/ Gestures

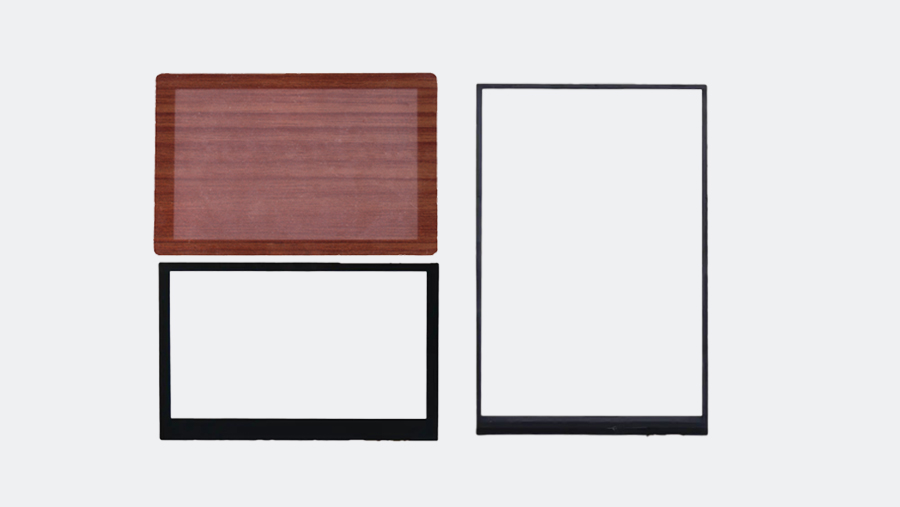

Cover Glass
1. Glass brand
2. Interface(I2C,USB)
3. Thickness
4. Surface Treatment: Anti-Glare/ Anti-Fingerprint/ Anti-Bacteria/ Anti-UV/ Ceramic
Mounting Add-Ons
Bezels, gaskets, custom enclosures, metal mounting brackets, threaded standoffs or pressure sensitive adhesive (PSA)
Customization Service---Mono LCD display：

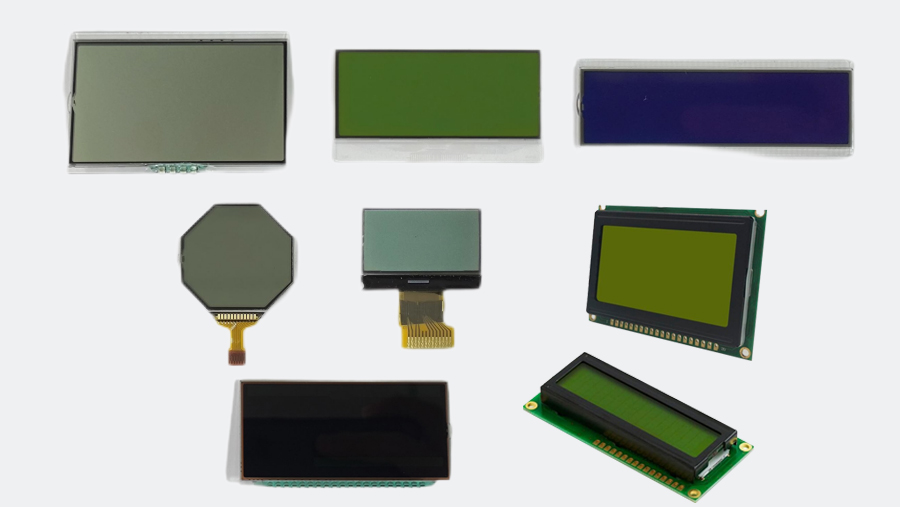

Customized
We can customize the shape, size, pins and component, TN, STN, FSTN, COB, COG, touch panel, while covering the segment display, character display, graphic display, the whole series

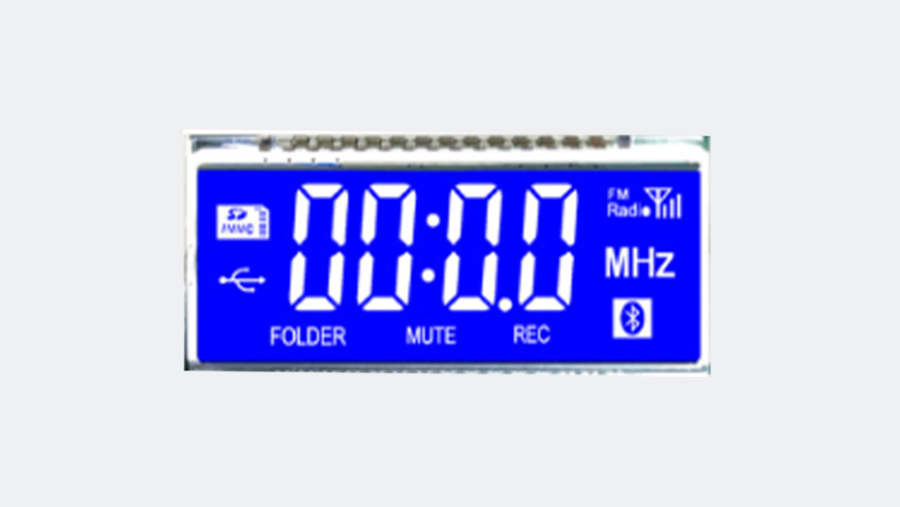

Display Mode
Positive Negative

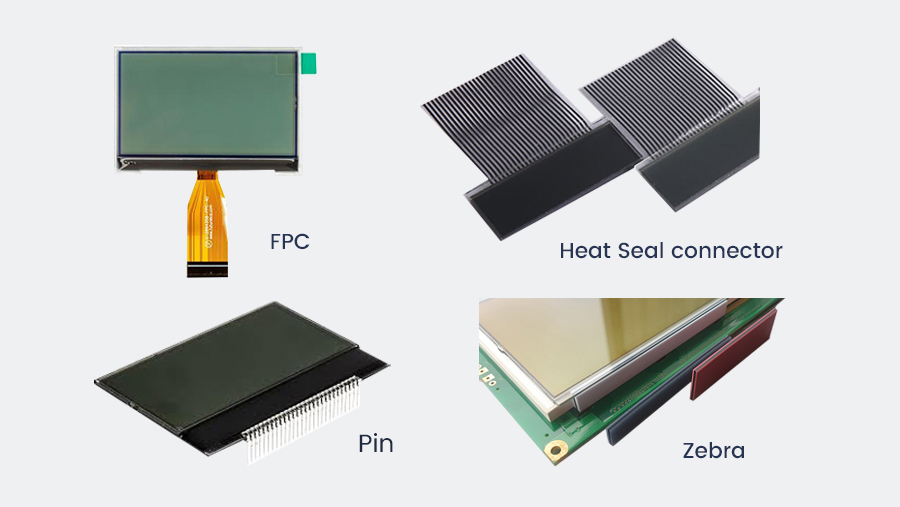

Connector
FPC, Metal Pins, Zebra, Heat-seal
Backlight
We change the voltage/input current, brightness or color, series and parallel of leds by custom backlight
